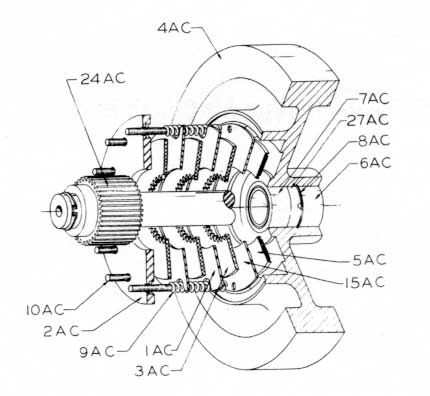

Use this chart for presses built before 1979 (serial numbers below 25000) *Prices are per unit
Ref.
No. |
Description |
15 Ton
Flywheel
Order Number |
25 Ton FW, 80 to 100 Ton Backshaft FW 75 spm
Order Number |
85, 110 Ton FW, 80 to 100 Ton Backshaft
FW 55 spm
Order Number |
40 Ton Flywheel
Order Number |
60 Ton Flywheel
Order Number |
40 to 60 Ton
Backshaft Flywheel
Order Number |
| 1AC |
Clutch Plate |
Not Available |
6809253B2
(2) 1AC
Call for Price |
6809253B2
(2) 1AC
Call for Price |
6809253B2
(2) 1AC
Call for Price |
6809253B2
(2) 1AC
Call for Price |
Not Available |
| 2AC |
Clutch Cover |
6810270B2
Call for Price |
6809251B2
Call for Price |
6809251B2
Call for Price |
6809251B2
Call for Price |
6809251B2
Call for Price |
6810270B2
Call for Price |
| 3AC |
Friction Plate |
6809252B2
(1) 3AC
Call for Price |
6809252B2
(3) 3AC
Call for Price |
6809252B2
(3) 3AC
Call for Price |
6809252B2
(4) 3AC
Call for Price |
6809252B2
(4) 3AC
Call for Price |
6809252B2
(1) 3AC
Call for Price |
| 4AC |
Flywheel |
0400104C2
1-4AC
Call for Price |
0409482C2
3-4AC
Call for Price |
0409570C2
10B-4AC
Call for Price |
0400108C2
4-4AC
Call for Price |
0400114C2
6-4AC
Call for Price |
0400112C2
2W-4AC
Call for Price |
| 5AC |
Piston
(3/8" thick for serial numbers below 22202) |
6811886B2
1/2" thick
6809254B2
3/8" thick
Call for Price |
6811886B2
1/2" thick
6809254B2
3/8" thick
Call for Price |
6811886B2
1/2" thick
6809254B2
3/8" thick
Call for Price |
6811886B2
1/2" thick
6809254B2
3/8" thick
Call for Price |
6811886B2
1/2" thick
6809254B2
3/8" thick
Call for Price |
6811886B2
1/2" thick
6809254B2
3/8" thick
Call for Price |
| 6AC |
Roller Bearing |
O.R.
740052802
SJ-7315
Call for Price
I.R.
740052902
IR-7315C
Call for Price |
O.R.
740053402
SJ-8517
Call for Price
I.R.
740053502
IR-8517C
Call for Price |
O.R.
740053402
SJ-8517
Call for Price
I.R.
740053502
IR-8517C
Call for Price |
O.R.
740053702
SJ-9648R
Call for Price
I.R.
740053802
IR-9648C
Call for Price |
O.R.
740053702
SJ-9648R
Call for Price
I.R.
740053802
IR-9648C
Call for Price |
O.R.
740053102
SJ-8447
Call for Price
I.R.
740053202
IR-8447C
Call for Price |
| 7AC |
Roller Bearing with Seal |
O.R.
740053002
SJ-7315R
Call for Price
I.R.
740052902
IR-7315C
Call for Price |
O.R.
740053602
SJ-8517R
Call for Price
I.R.
740053502
IR-8517C
Call for Price |
O.R.
740053602
SJ-8517R
Call for Price
I.R.
740053502
IR-8517C
Call for Price |
O.R.
740053902
SJ-9648R
Call for Price
I.R.
740053802
IR-9648C
Call for Price |
O.R.
740053902
SJ-9648R
Call for Price
I.R.
740053802
IR-9648C
Call for Price |
O.R.
740053302
SJ-8447R
Call for Price
I.R.
740053202
IR-8447C
Call for Price |
| --- |
Grease Seal |
910278002
S-7315
Call for Price |
included
w/bearings |
included
w/bearings |
included
w/bearings |
included
w/bearings |
910087502
S-8447
Call for Price |
| 8AC |
Retaining Ring |
890058402
(2) 5000-231
Call for Price |
890058602
(2) 500-375
Call for Price |
890058602
(2) 500-375
Call for Price |
890058702
(1) 5000-475
Call for Price |
890058702
(1) 5000-475
Call for Price |
890058502
(1) 5000-325
Call for Price |
| 9AC |
Spring (6) |
931189702
1 O.D. x 1-1/4" lg.
Call for Price |
931189602
1 O.D. x 2" lg.
Call for Price |
931189602
1 O.D. x 2" lg.
Call for Price |
931189502
1 O.D. x 2-1/2" lg.
Call for Price |
931189402
1 O.D. x 3-1/2" lg.
Call for Price |
931189702
1 O.D. x 1-1/4" lg.
Call for Price |
| 10AC |
Hex Hd. Cap Screw
1/2 - 13 (Case Hard) |
900084602
3-3/4" lg.
Call for Price |
900175602
5" lg.
Call for Price |
900175002
4-1/2" lg.
900175702
5-1/2" lg
Call for Price |
900085102
6" lg.
Call for Price |
900175802
6-1/2" lg.
900085002
5-1/2" lg
Call for Price |
900084602
3-3/4" lg.
Call for Price |
| --- |
Lock Nuts (12) |
850093902
Call for Price |
850093902
Call for Price |
850093902
Call for Price |
850093902
Call for Price |
850093902
Call for Price |
850093902
Call for Price |
| 15AC |
Spring Plate (1) |
6809255B2
9255-B
Call for Price |
6809255B2
9255-B
Call for Price |
6809255B2
9255-B
Call for Price |
6809255B2
9255-B
Call for Price |
6809255B2
9255-B
Call for Price |
6809255B2
9255-B
Call for Price |
| 24AC |
Spline |
4800196B2
1-1/2" I.D.
Call for Price |
4809488B2
2-1/2" I.D.
Call for Price |
4809488B2
2-1/2" I.D.
Call for Price |
4800199B2
3-1/4" I.D.
Call for Price |
4800199B2
3-1/4" I.D.
Call for Price |
4800197B2
2" I.D.
Call for Price |
| 27AC |
Spacer |
4511226B2
1-5/8" x 1-1/2" lg.
Call for Price |
4509485B2
2-3/4" x 1-1/8" lg.
Call for Price |
4509485B2
2-3/4" x 1-1/8" lg.
Call for Price |
4500167B2
4-5/8" x 1-1/2" lg.
Call for Price |
4500167B2
4-5/8" x 1-1/2" lg.
Call for Price |
Not Available |
| 86AC |
Roll Pin |
860109902
Call for Price |
860109902
Call for Price |
860109902
Call for Price |
860109902
Call for Price |
860109902
Call for Price |
860109902
Call for Price |
